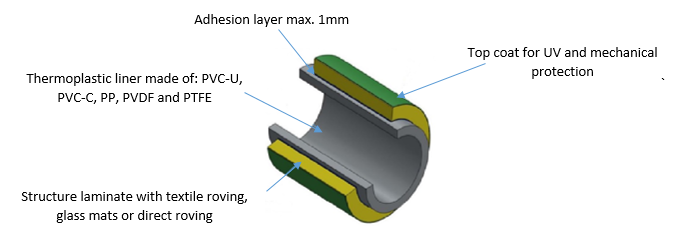

Dual Laminate Pipes and Fittings (Type B):
Dual Laminate pipe systems incorporate a thermoplastic liner in an FRP structure combining the enhanced corrosion resistance of thermo¬plastics with the higher strength and load carrying capabilities of FRP. These products are produced in accordance with DIN 16965-part2 standard. Based on the type of fluid (concentration and temperature), the thermoplastic liner could be choose from a wide range of materials as below. (Read more)
Thermoplastics lining materials
|
PP
|
Poly-propylene
|
PVC-U
|
Unplasticized Poly-vinyl-chloride
|
PVC-C
|
Postchlorinated Poly-vinyl-chloride
|
PTFE
|
Poly-tetra-fluoro-ethylene
|
PVDF
|
Poly-vinyl-dene-fluoride
|

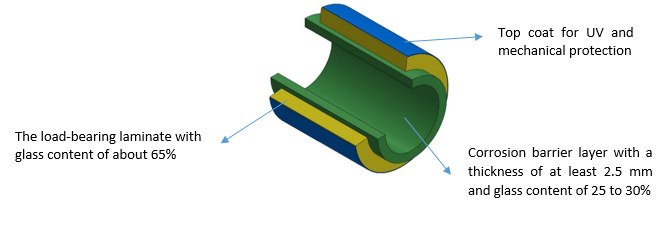

GRP & GRV pipes and fittings (Type D):
These types of pipes and fittings are constructed with a chemical barrier layer and a structural layer in order to bear mechanical loads. These products would be designed and constructed according to DIN 16965-part4. (Read more)

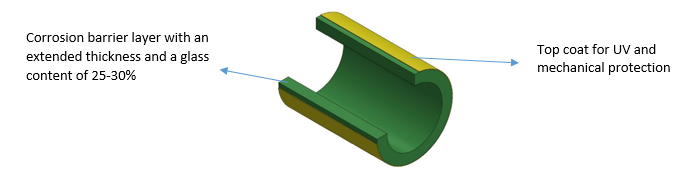

GRP & GRV pipe and fittings (Type E):
These types of pipes and fittings would be designed and constructed in accordance with DIN 16965-part5 with a thick chemical and structural layer. These types of pipes and fittings are widely used in Chlor-Alkali processes. . (Read more)
